Workflow

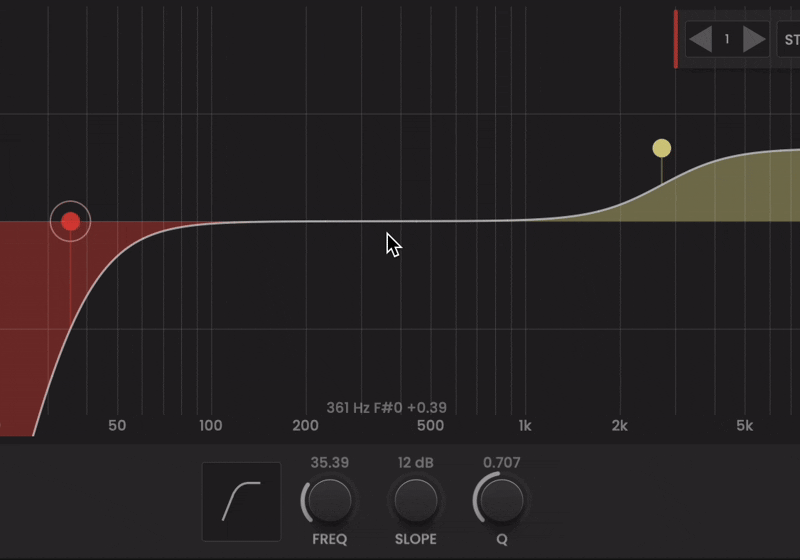

The workflow is intuitive and simple. Double-click to create a new EQ band. Hold down SHIFT while creating a band to enable dynamics immediately. Use the mouse and mouse wheel to set the position and adjust Q, or use the knobs at the bottom, or enter values directly with the keyboard. Multi-selection is also possible to edit multiple bands in one step.
Double-click a band or use the X icon to delete it. Adjust the slope of the bell curve to create a flat-top bell filter, a flat-top bandpass, or a steeper shelf, low-pass, or high-pass filter. Most filters support a slope from 12dB up to 96dB per octave.

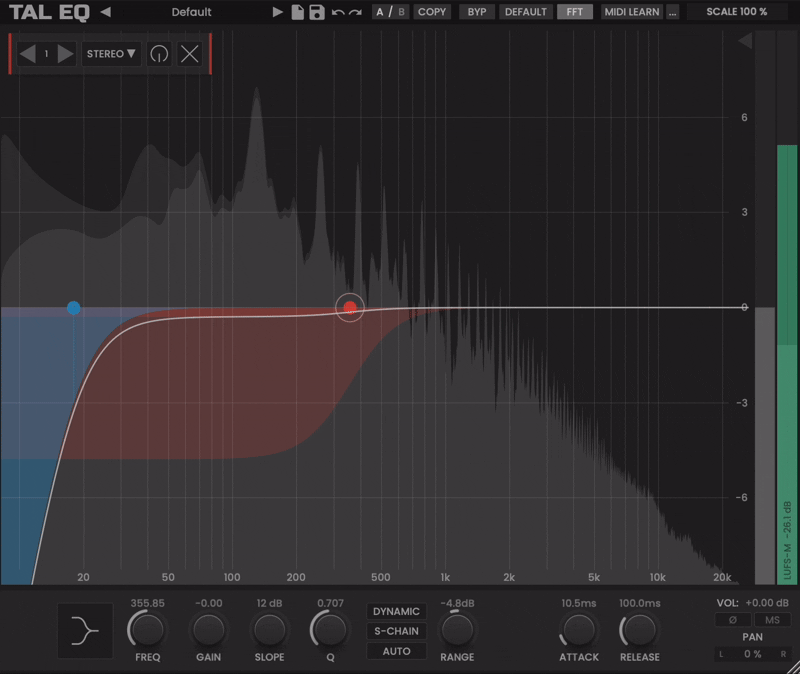

DYNAMIC

Shelf and bell filters support dynamic processing. This allows the EQ band gain to be controlled by the input level of the affected frequency range, helping you achieve more transparent mixes. For example, you can reduce the low end of a bass only when the kick plays—similar to sidechain compression, but less intrusive, since it affects only specific frequency ranges rather than the entire signal. It can also be used for de-essing when certain frequencies exceed a threshold, while leaving quiet parts untouched, along with many other creative applications.

PROCESSING OPTIONS

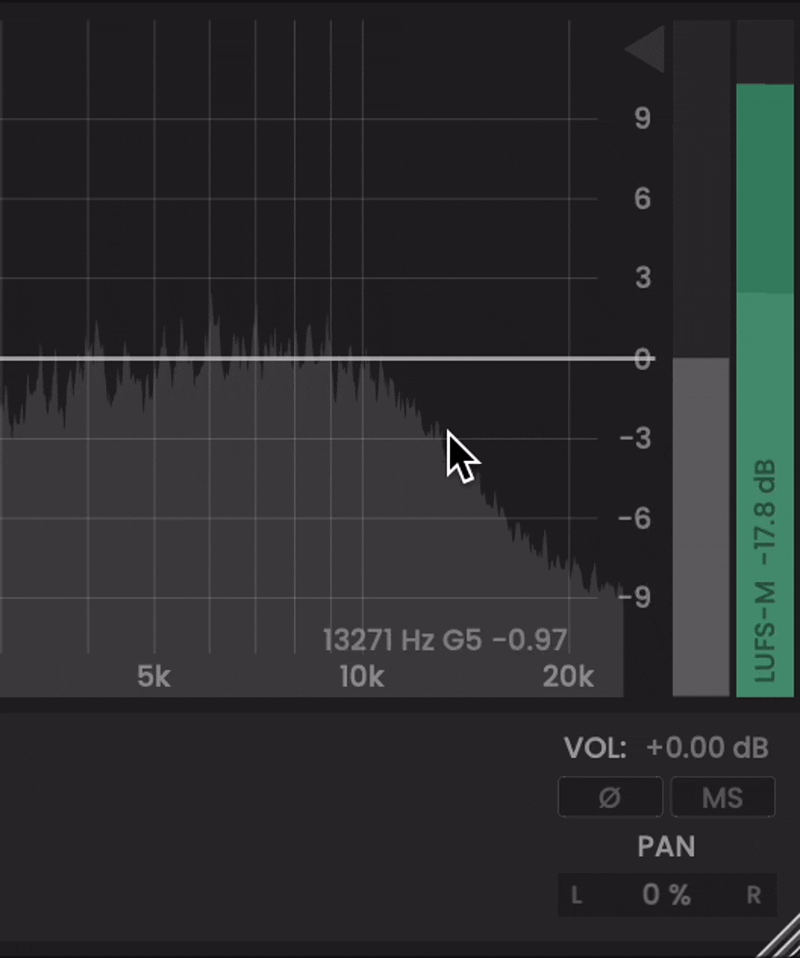

You can adjust the output volume or pan the signal. With MS enabled, the volume of the mono or stereo part can be adjusted separately. A phase invert button is also available.
The plugin also offers different processing options for each band:

GENERAL

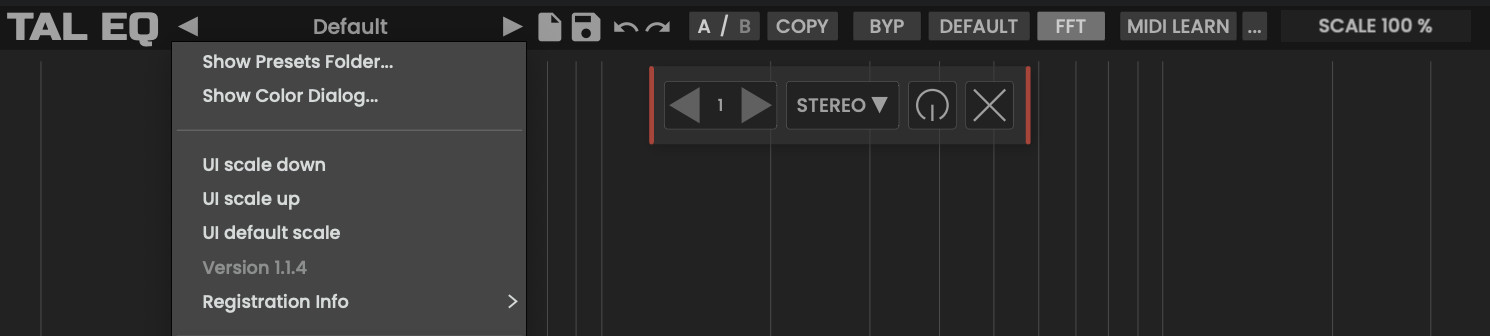

Menu

A click on the preset name opens the menu:

Show Color Dialog...

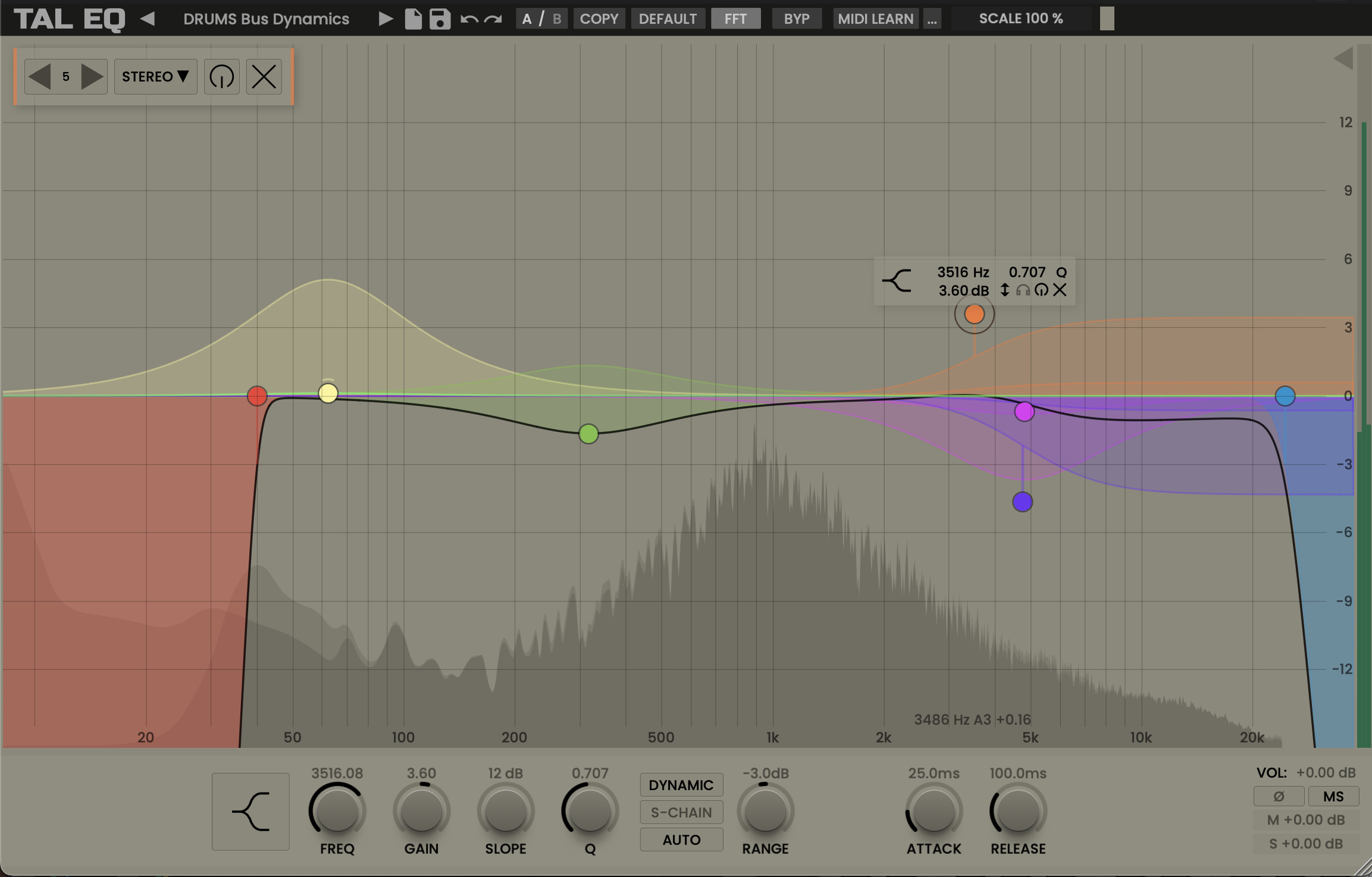

Opens a dialog that lets you choose different plugin colors. You can also specify your own hex color to create a custom look and feel. The first two hex digits represent the opacity value.

UI Scale Down / Up
Allows you to scale UI components like knobs, buttons, and text. Use scale up if you prefer larger text and controls. The resizer in the bottom right corner increases the UI size/workspace but does not scale the knobs.

UI default scale
Restores the default scaling and size for the plugin UI.

Version
Shows the plugin version.

Registration Info
Shows the email address used to register the product.

Main Settings

The document icon opens the preset browser. The disk icon saves a preset to disk. Undo/redo arrows let you step through modifications, and the A/B button allows quick comparison between two different settings.

BYP
Disables processing, useful for comparing the processed signal with the original audio.

DEFAULT
Loads the default preset, which is always the file named “default” in the preset folder. You can overwrite this file if you want to define a new default preset.

FFT
Enables or disables the real-time spectrum analyzer shown behind the EQ curves.

MIDI LEARN
Lets you MIDI-automate every band parameter, including band selection (selection arrows). “Edit selected” ensures that the currently selected band can be controlled.

SCALE
Controls the global scale of all EQ gains. This should remain at 100% in most cases.

Additional info

Double-clicking any slider or knob resets it to the default value. This is especially useful for the Q parameter, where a value of 0.707 guarantees a flat passband and the steepest possible slope for low-pass, high-pass, and shelf filters.
The plugin comes with many factory presets, most of them created by Andi Vax, a few by Solidtrax and one by Saif Sameer.

Registration

The plugin will run in demo mode without registration. You will receive a key after the payment. The plugin will ask for the key if you open the UI. You need to be online, but offline registration is also possible. You can always login and download the key.
